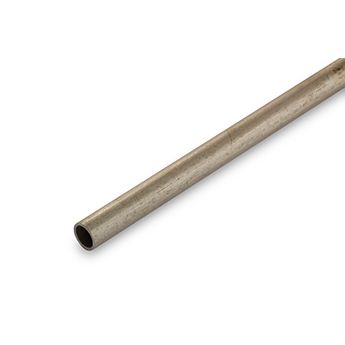

Aluminium/Magnesium/Silicon - Tube - Al98/Mg 1/Si 1
Product No.: AL087300
Outside Diameter: 12.7mm
Wall Thickness: 1.22mm
Inside Diameter: 10.26mm
Temper: Hard
Wall Thickness: 1.22mm
Inside Diameter: 10.26mm
Temper: Hard
Typical Analysis
Cr < 2500, Cu < 1000, Fe < 5000, Ti < 2000, Zn < 2000
Tolerances
| Outside Diameter: | =<2mm | ±0.05mm |
|---|---|---|
| Polymer | ±10% | |
| Ceramic | ±10% | |
| =<5mm | ±0.1mm | |
| Polymer | ±10% | |
| Ceramic | ±10% | |
| >5mm | ±5% | |
| Polymer | ±10% | |
| Ceramic | ±10% | |
| Wall Thickness: | ±10% | |
| Polymer | ±20% | |
| Ceramic | ±20% | |
| Length: | <100mm | ±1mm |
| >=100mm | +5% / -1% |
